x-webhooks
Compatibility warning
This specification extension is supported in OpenAPI 2.0 and 3.0.
In OpenAPI 3.1, use webhooks instead.
Usage
Use x-webhooks in your OpenAPI 2.0 and 3.0 definitions to document webhooks the same way you document APIs. Add it to the root OpenAPI object.
The only difference between the format of the OpenAPI 3.1 webhooks and the extension's format is the x- prefix to the field name (which becomes x-webhooks).
| Field name | Type | Description |
|---|---|---|
| webhooks | Map[string, Path Item Object | Reference Object] | The incoming webhooks that MAY be received as part of this API and that the API consumer MAY choose to implement. Closely related to the callbacks feature, this section describes requests initiated other than by an API call, for example by an out of band registration. The key name is a unique string to refer to each webhook, while the (optionally referenced) Path Item Object describes a request that may be initiated by the API provider and the expected responses. An example is available. |
Examples
openapi: '3.0'
info: ...
tags: [...]
x-webhooks:
feed-pets:
post:
summary: Send bits to feed one or more pets
operationId: feed-pets
tags:
- Post operations
requestBody:
$ref: '#/components/schemas/NewPet'
responses:
2XX:
description: >-
Return any 2XX status to indicate that the data was received

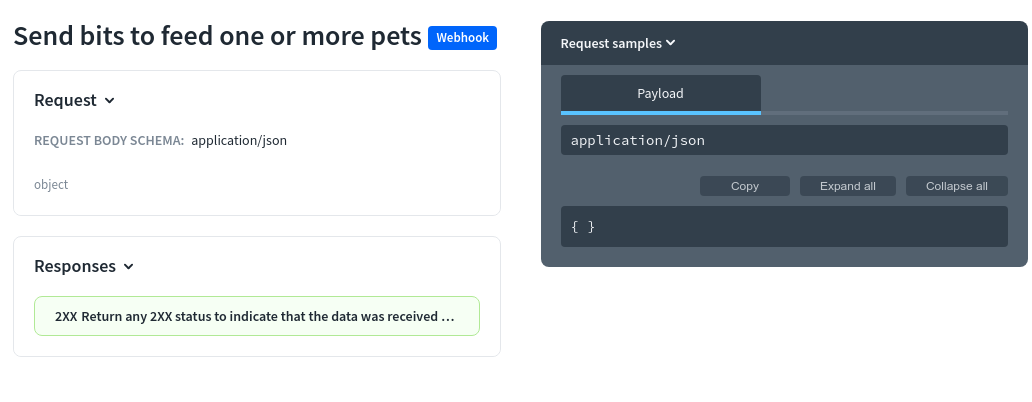

successfullyIn Reference docs
