x-defaultClientId

Usage

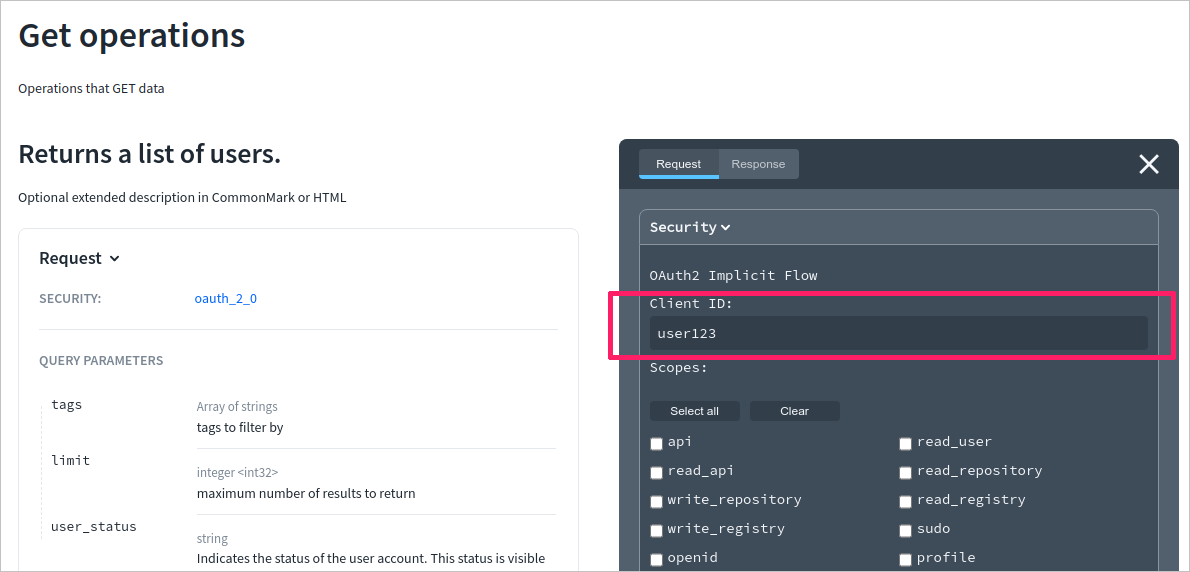

Use x-defaultClientId to preset the default clientId value in relevant security definitions. Add it directly to the flow object or to the securityScheme object. When specified, the preset clientId value is displayed in the Try it console. Note that the console must be enabled in the Reference docs configuration for this value to be visible.

This specification extension supports:

• OIDC
• implicit, authorizationCode and clientCredentials OAuth2 flows

Examples

Flow level

openapi: '3.0'
info: ...
tags: [...]
components:
  securitySchemes:
    oauth_2_0:
      type: oauth2
      flows:
        implicit:
          x-defaultClientId: user123
          authorizationUrl: https://example.com/api/oauth/dialog
          scopes:
            write:items: modify items in your account
            read:items: read your items

Security scheme level

openapi: '3.0'
info: ...
tags: [...]
components:
  securitySchemes:
    oauth_2_0:
      type: oauth2
      x-defaultClientId: user123
      flows:
        implicit:
          # ...
        clientCredentials:
          # ...

In Reference docs
