x-example and x-examples

Compatibility warning

These specification extensions are supported only in OpenAPI 2.0.

Usage

Use x-example and x-examples to add custom examples to a request. Add them to the parameter OpenAPI object. When specified, the content of the extensions is rendered in the JSON tab in the right panel of the API documentation.

Field Name	Type	Description
x-examples	Example Object	Object that contains examples for the request. Applies when `in` is `body` and mime-type is `application/json`

Examples

The difference between these extensions is in the content they support (single example value or an entire example object).

x-example - maps the MIME type to an example value (any JSON):

Copy

Copied

x-example:
  application/json:
    message: OK
    type: success
  text/plain: 'OK'

x-examples - maps the MIME type to a whole example object with a custom name. It's possible to include multiple objects for the same type:

Copy

Copied

x-examples:
  application/json:
    my-example-name:
      summary: Some Example
      value:
        message: OK
        type: success
    another-example:
      summary: Another Example
      value:
        message: Something went wrong
        type: error

In Reference docs

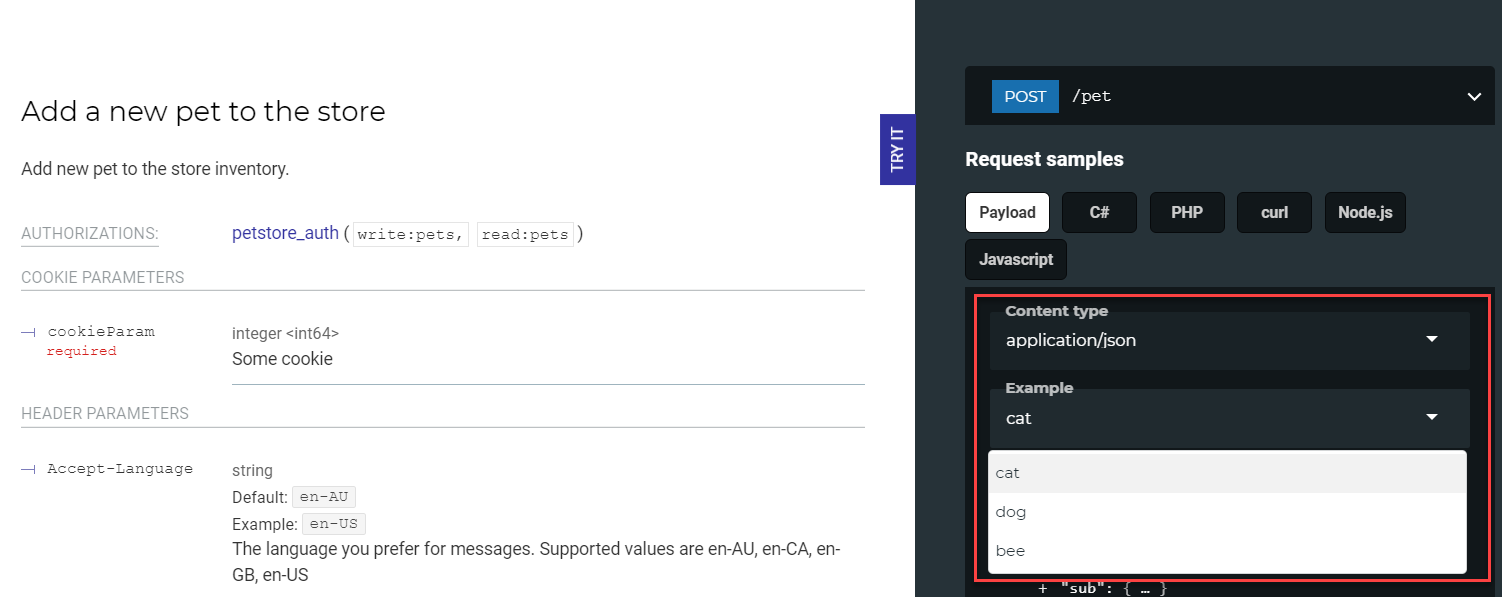

JSON examples in the right panel
